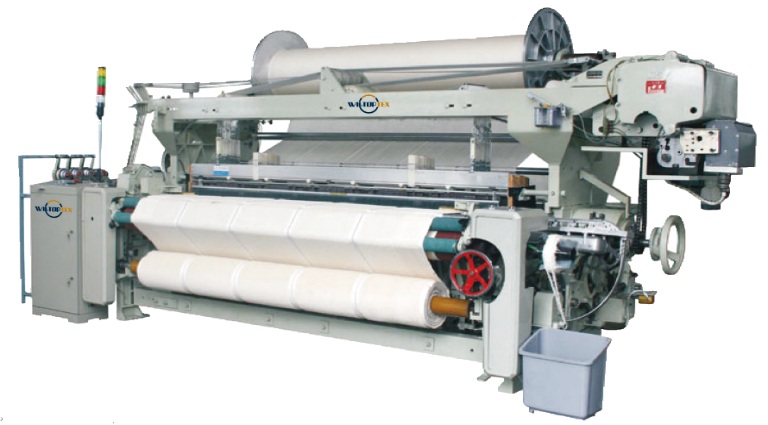

Description
Reed width(cm): 180/200/230/260/280/300/360/380cm.
Speed R.P.M: 160~220rpm
Yam range: Cotton 6ne~80ne， wool10nm~135nm， chemical fiber 900d~70d.
Shedding: Electronic dobby 20 shafts. / Electronic jacquard 1344, 1536, 2688, 5376, 6144 hooks etc.
Let-off: Intermittent let of for electronic by servo motor.
Take-up: Continuous take up or electronic by servo motor. max. Cloth roller diameter φ 600mm.
Looping: Reed movement. Stepless adjustment from 2 to 12 mm by servo looping.
Weft Selection：6-8 colors electronic selector.
Diameter of Warp Beam: Ground beam φ 680mm. pile beam φ 800mm.
Warp Stop: 6rows electronic warp stop.
Weft Stop: Piezoelectric ceramic sensor weft stop.
Electric System: P.L.C
Power: 1.8~2.2kw.
Speed R.P.M: 160~220rpm
Yam range: Cotton 6ne~80ne， wool10nm~135nm， chemical fiber 900d~70d.
Shedding: Electronic dobby 20 shafts. / Electronic jacquard 1344, 1536, 2688, 5376, 6144 hooks etc.
Let-off: Intermittent let of for electronic by servo motor.
Take-up: Continuous take up or electronic by servo motor. max. Cloth roller diameter φ 600mm.
Looping: Reed movement. Stepless adjustment from 2 to 12 mm by servo looping.
Weft Selection：6-8 colors electronic selector.
Diameter of Warp Beam: Ground beam φ 680mm. pile beam φ 800mm.
Warp Stop: 6rows electronic warp stop.
Weft Stop: Piezoelectric ceramic sensor weft stop.
Electric System: P.L.C
Power: 1.8~2.2kw.
