Description
Base Loom:

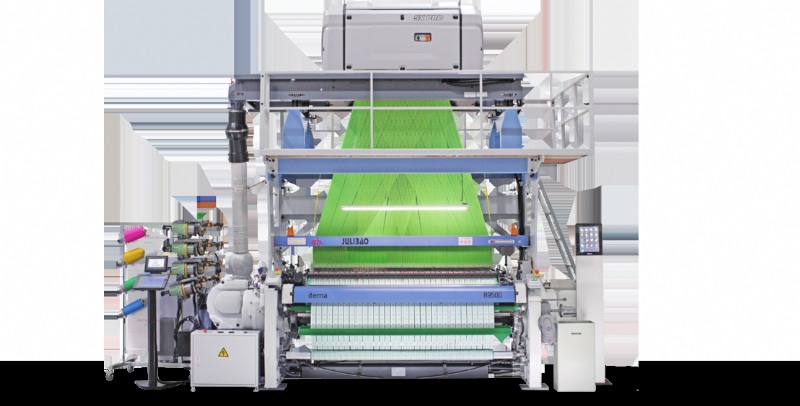

??Loom : Itema R9500?2 (Origin Italy)
??Speed : 600 rpm (max)
??Working Width : 1600mm
??Cycle Numbers : 4 repeats for taffeta (1 repeats = 40cm)
??Weft Density Adjustment : Adjust in the range between 2 to 200 picks/cm.
??Take?up : Electronic take?up
??Let?off : Microprocessor control electronic let?off device with tension device
??Drive : Direct drive by one main super motor ? Hi Drive
??Weft Tension : Double?twist electronic weft storage device adjustment
??Weft Searching System : Electronic automatic detecting weft finder
??Weft Selector : 8 color electronic controlled color selector
??Beam Diameter : 800mm
??Cloth Roller Diameter : 600mm (max)
??Main motor Power : 8kw (approx.)
Jacquard:
??Model : Staubli?SX Pro (Origin France)
??Hooks : 2304 hooks
??Control System : TC8 Latest Electronic control system
??Power : 0.8KW
??Weight : 800KG
??Jacquard Support Frame : Using double high tensile steel plate superstructure design, easy
access with jacquard and high stability.
??Loom : Itema R9500?2 (Origin Italy)
??Speed : 600 rpm (max)
??Working Width : 1600mm
??Cycle Numbers : 4 repeats for taffeta (1 repeats = 40cm)
??Weft Density Adjustment : Adjust in the range between 2 to 200 picks/cm.
??Take?up : Electronic take?up
??Let?off : Microprocessor control electronic let?off device with tension device
??Drive : Direct drive by one main super motor ? Hi Drive
??Weft Tension : Double?twist electronic weft storage device adjustment
??Weft Searching System : Electronic automatic detecting weft finder
??Weft Selector : 8 color electronic controlled color selector
??Beam Diameter : 800mm
??Cloth Roller Diameter : 600mm (max)
??Main motor Power : 8kw (approx.)
Jacquard:
??Model : Staubli?SX Pro (Origin France)
??Hooks : 2304 hooks
??Control System : TC8 Latest Electronic control system
??Power : 0.8KW
??Weight : 800KG
??Jacquard Support Frame : Using double high tensile steel plate superstructure design, easy
access with jacquard and high stability.
